Product description
- The Jackson Cross Cylinder (JCC) Set of 2 is a core subjective refraction tool used to precisely refine astigmatism (cylinder) power and axis. Each JCC contains equal plus and minus cylinder components placed 90° apart, so flipping the lens instantly reverses the astigmatic effect—letting the patient compare “1 or 2” quickly while you fine-tune to a crisp, repeatable endpoint. Supplied as a set of two (commonly ±0.25 D and ±0.50 D), it supports both small, sensitive refinements and faster coarse adjustments depending on the case.
- What it refines: Cylinder axis and cylinder power in subjective refraction
- How it works: Flip the JCC to alternate plus/minus cylinder effects; use the axis handle markers to guide rotation
- Set of 2 advantage: Choose the power that matches sensitivity—lighter JCC for fine tuning, stronger JCC for quicker changes (commonly ±0.25 and ±0.50)
- Typical use steps: Best sphere first → introduce cylinder → JCC for axis refinement → JCC for power refinement → confirm with binocular balance (as needed)
- Accuracy benefits: Faster patient choices (“1 or 2”) with consistent, repeatable endpoints for astigmatism correction
- Who it suits: Routine refractions, post-op fine tuning, high astigmatism cases, and training/teaching settings
- Care: Clean lenses with lens-safe solution; avoid touching optical faces; store in a protective case to prevent scratches and keep markings legible
| Topic | Details |
| Purpose / Target Users | The Jackson Cross Cylinder (JCC) Set is a diagnostic optometry instrument used during subjective refraction to refine cylindrical lens power and axis in astigmatism correction. It allows the clinician to compare lens orientations to determine the most accurate astigmatic correction. The tool is primarily used by optometrists, ophthalmologists, and refraction technicians in clinical eye examinations. |
| Optotypes / Symbols | Not applicable. The Jackson Cross Cylinder is a diagnostic optical lens instrument, not a visual chart. It does not contain letters, numbers, or symbols. Optotypes used during testing are provided by visual acuity charts used during the refraction process. |
| Scaling / Spacing | Not applicable. The device contains crossed cylindrical lenses with equal power in opposite meridians, typically oriented at 90° to each other, enabling quick comparison of astigmatic correction during refraction. |
| Range of Acuity / Line Sizes | Not applicable. The Jackson Cross Cylinder does not determine acuity levels itself; it is used alongside visual acuity charts to refine the cylindrical component of a patient’s refractive prescription. |
| Testing Distance | The JCC is used during subjective refraction, typically performed at standard distance visual acuity testing distance (commonly 6 meters / 20 feet) or through optical simulation systems such as phoropters or trial frames in the examination room. |
| Physical Size & Portability | The Jackson Cross Cylinder typically features optical lenses approximately 35 mm in diameter with a handheld handle around 70 mm in length, allowing comfortable manual flipping during refraction procedures. The instrument is compact and portable for use in examination rooms or mobile eye testing setups. |
| Mounting / Display Features | The device is a handheld optical instrument with a rotating or flip handle that allows the clinician to quickly switch between the two cylindrical lens orientations during testing. It is typically used with trial frames or phoropters while the patient views an acuity chart. |

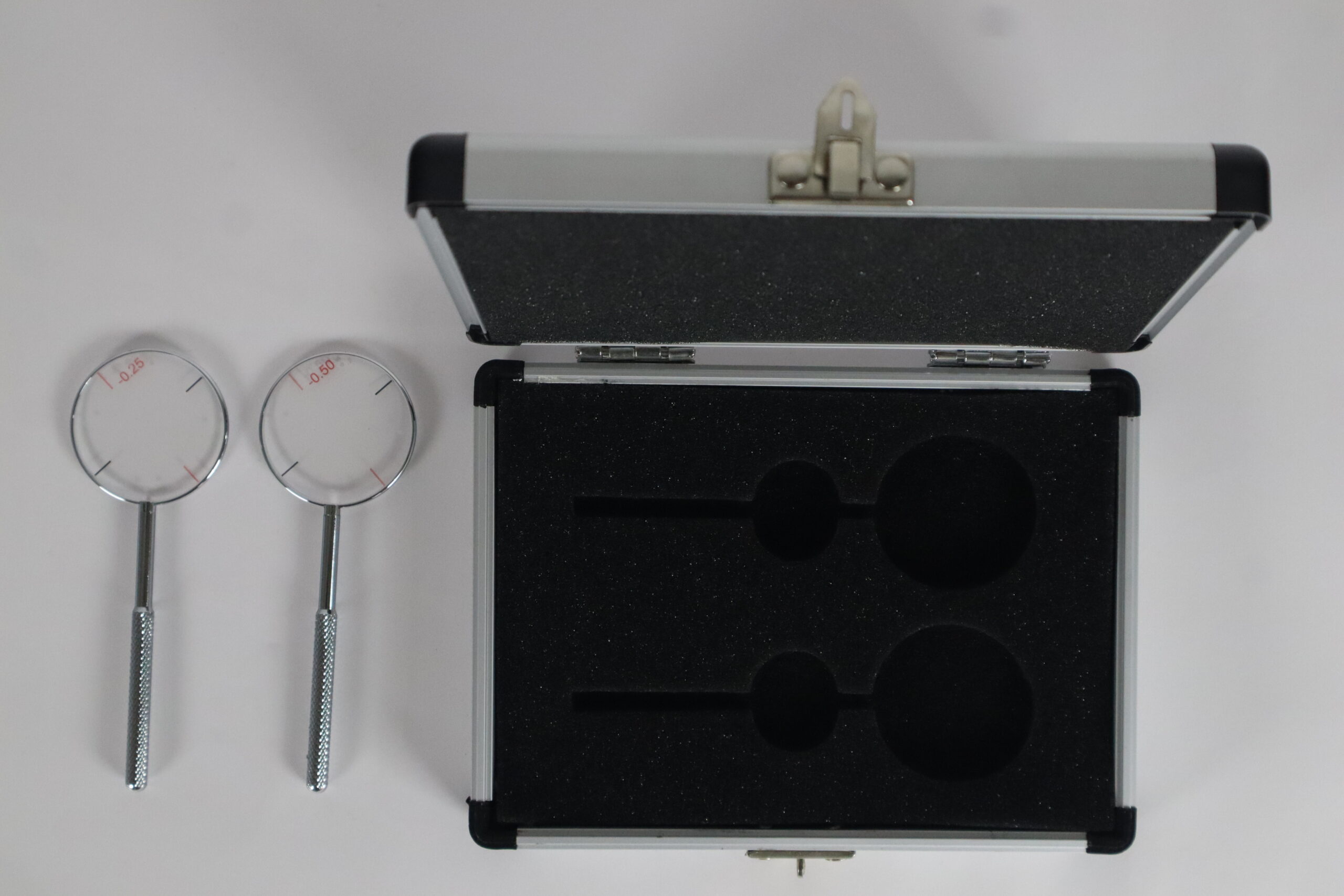

| Included Accessories / Extras | The Jackson Cross Cylinder Set typically includes two lenses with cylindrical powers of ±0.25D and ±0.50D, supplied in a protective metal storage box for safe storage and transport. |
| Durability / Material Qualities | The lenses are generally made from precision optical glass mounted in durable metal frames with ergonomic handles. The protective metal storage case helps prevent damage during transport and ensures long-term durability for clinical use. |
| Usability / Marker of Quality | A high-quality Jackson Cross Cylinder provides accurate cylindrical power alignment, clearly marked axis indicators, and smooth flipping action for quick lens comparison. Quality instruments feature precise optical alignment, durable construction, and reliable performance, making them essential tools in professional refraction and astigmatism assessment. |
