Product description
- The Maddox Rod Set is a classic dissociation tool for detecting and quantifying horizontal and vertical phorias/tropias at distance or near. Placed before one eye, the cylindrical rods convert a point light into a line; any misalignment shows up immediately as the line not passing through the light. With a penlight and prism neutralization, you can measure the deviation in prism diopters quickly and repeatably—making it invaluable for chairside screening, full binocular vision workups, and follow-up checks.
- What it does: Dissociates binocular vision to reveal latent/manifest deviations (eso/exo, hyper/hypo)
- How it works: Rods turn a point source → line (red or clear/white), viewed horizontally or vertically to isolate the meridian you’re testing
- Fast measurement: Combine with loose prisms/prism bar to neutralize and read Δ directly
- Use cases: Distance/near phoria testing, diplopia analysis, cyclovertical assessments, pre/post-treatment comparisons
- Workflow (at a glance): Dim room → patient fixates penlight → place rod (e.g., red horizontal) over one eye → note line position vs. light → add prism until the line intersects the light → record power/base
- Why clinicians like it: Portable, quick, and highly sensitive to small misalignments; easy to repeat across visits
- Great pairings: Prism Bar Set or Loose Prism Set, LED/Blue-White penlight, occluder for cover testing
- Care: Wipe rods with lens-safe solution and a soft cloth; avoid scratches/solvents; store in a protective sleeve/case to keep striations pristine different that the brain cannot merge them.
| Topic | Details |
| Purpose / Target Users | The Maddox Rod Set is a diagnostic tool used in optometry and ophthalmology to assess ocular alignment and binocular vision disorders, particularly horizontal and vertical phorias or tropias. It converts a point light source into a line image to dissociate the eyes and reveal misalignment. It is commonly used by optometrists, ophthalmologists, orthoptists, and vision therapy specialists during binocular vision examinations. |
| Optotypes / Symbols | The Maddox Rod does not use traditional optotypes or letters. Instead, it consists of a series of parallel cylindrical lenses that transform a point light into a bright streak or line, allowing clinicians to evaluate eye alignment relative to a fixation light. |
| Scaling / Spacing | The rods contain multiple parallel cylindrical grooves arranged closely together. These grooves refract incoming light to produce a straight luminous line. Exact groove spacing is typically standardized by the manufacturer to ensure consistent optical effect, though specific measurements may vary by model. |
| Range of Acuity / Line Sizes | Not applicable. The Maddox Rod is not designed for visual acuity testing but for evaluating ocular deviation and binocular alignment. Therefore, it does not include line sizes or acuity scales such as 20/20 or 6/6. |
| Testing Distance | Maddox Rod testing can be performed at distance (typically 6 meters / 20 feet) or near (approximately 33–40 cm) depending on the clinical examination protocol. It is commonly used in conjunction with a penlight or fixation light source during cover tests or phoria measurements. |
| Physical Size & Portability | Maddox rods are typically compact handheld devices designed for easy use in examination rooms. Each rod is lightweight and portable, making it suitable for clinical examinations, screening setups, or portable diagnostic kits. Exact dimensions may vary depending on the manufacturer. |
| Mounting / Display Features | Maddox rods can be used handheld or mounted in a trial frame during binocular vision testing. The rod orientation (horizontal or vertical) determines whether horizontal or vertical deviations are assessed. |

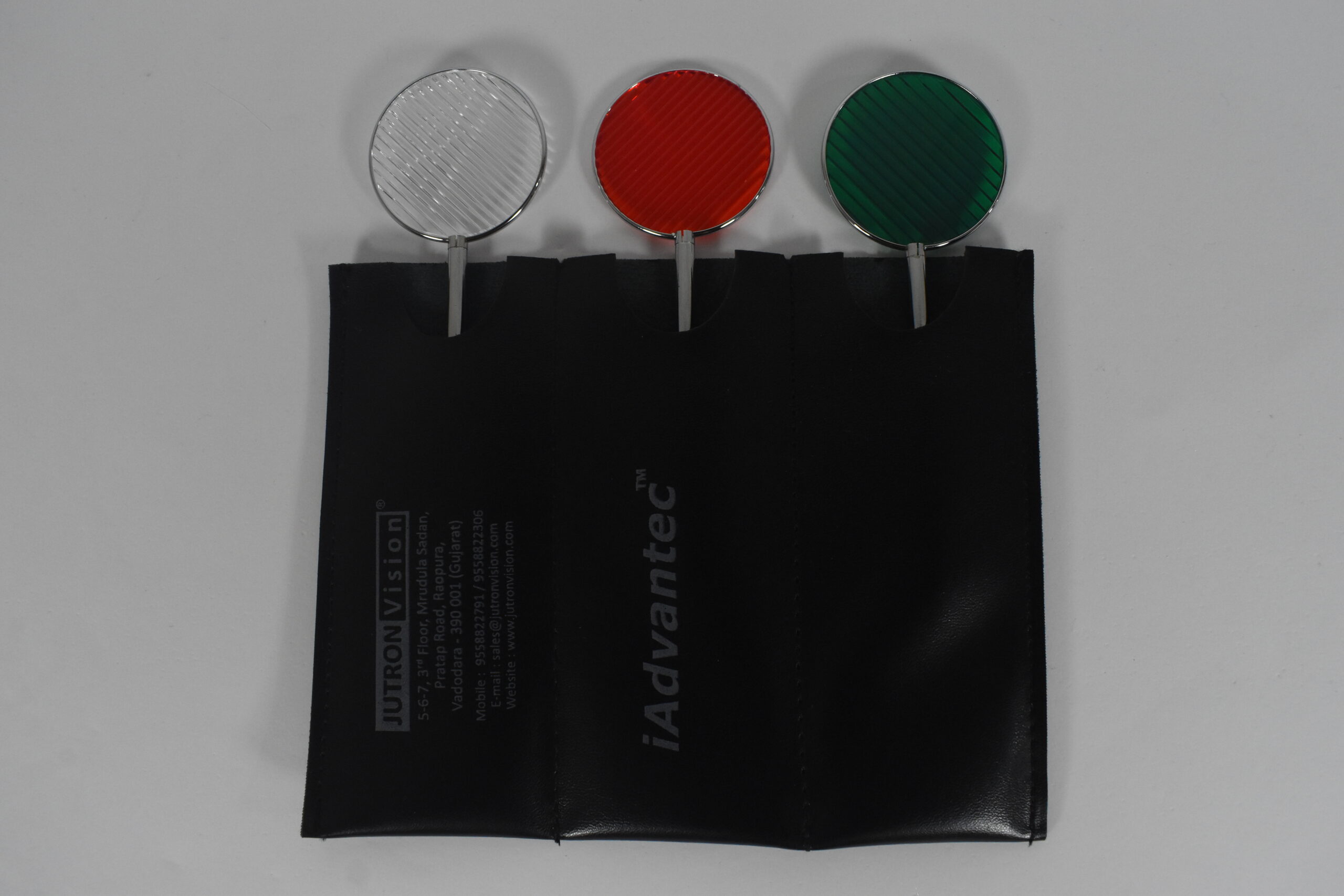

| Included Accessories / Extras | The Maddox Rod Set typically includes three rods: Red Maddox Rod, Green Maddox Rod, and White Maddox Rod, allowing flexibility in binocular testing and dissociation techniques during clinical examination. |
| Durability / Material Qualities | Maddox rods are generally constructed using precision molded optical plastic or glass cylinders housed in durable frames or handles. They are designed for repeated clinical use and easy cleaning between patients. |
| Usability / Marker of Quality | High-quality Maddox Rod sets are manufactured with optical precision to ensure clear line formation and accurate binocular assessment. They are widely used in professional eye examination settings and are compatible with standard trial frames and clinical diagnostic procedures. |
